SIMPLE SYSTEM COMPONENTS
THAT ARE EASY TO INSTALL
01
Connect the incoming waste pipe to pre-installed 4”/100mm connection point
02

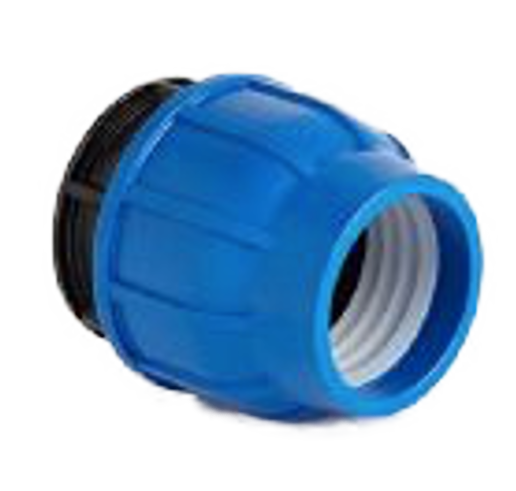

Connect the pumping main to the supplied compression fitting - no tools required
03

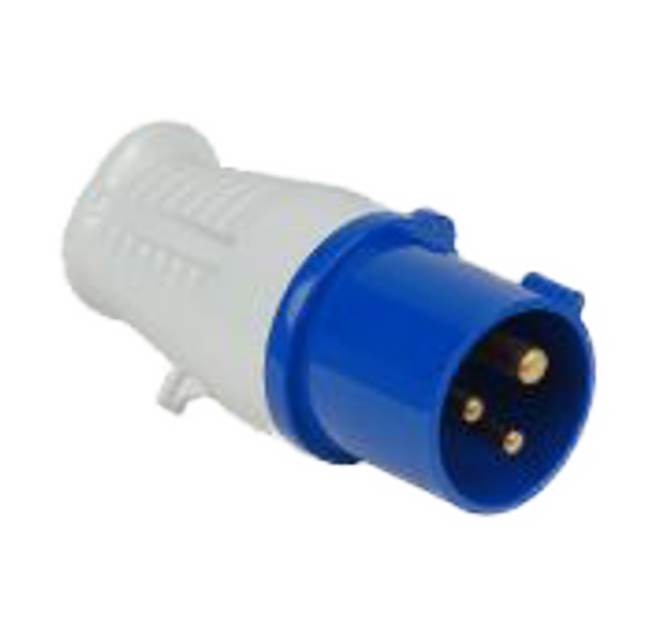

Plug in to 240v power supply from the cabins and turn on!
PERFORMANCE DATA

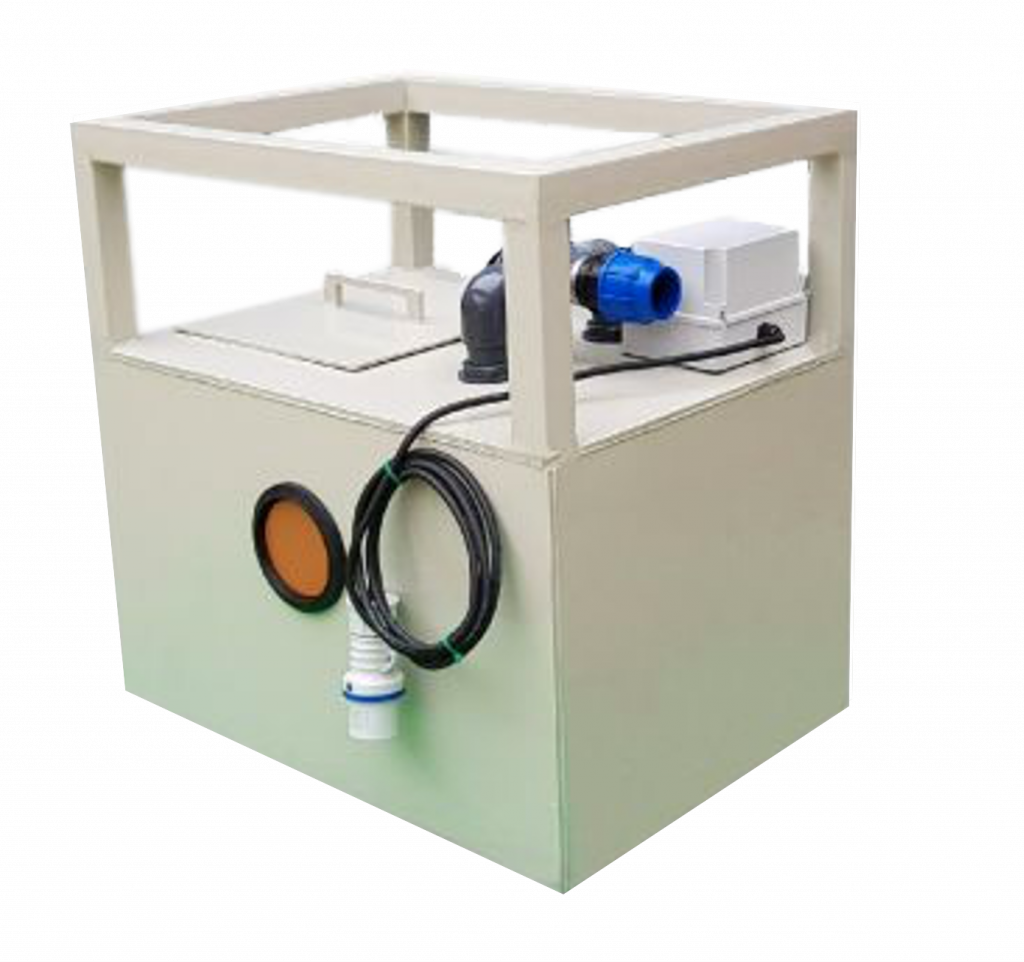

CABIN PUMP MODEL
1.5
2.10
Number of WC’s
10
20
Number of People
10
20
Max Pumping Distance
10
20
Max Pumping Height
10
20
Pumping Main Required (OD)*
10
20
Pump Type
Macerator
Power Supply
230v
Power Rating
1.1kW
Rated Current
4.97 A
Starting Current
24.85 A
Thermal Pump Protection
Included
Power Connection
32A 3-Pin Plug
* Rising main preferred specification SDR17 Black
